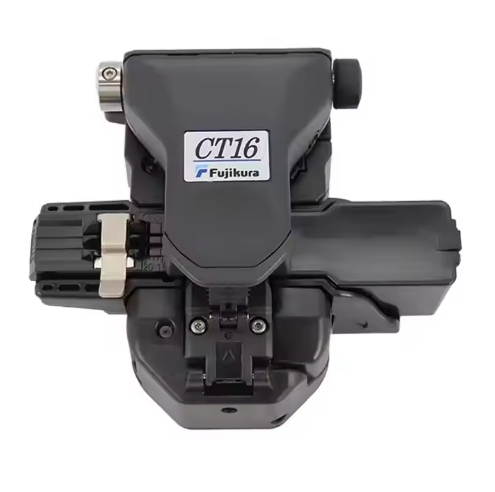

CT16 Fibre Cleaver Descriptions:

The CT16 Fibre Cleaver from Fujikura was designed for FTTH or other space

constrained applications where ergonomics and durability are key. It is compact, can

be operated ambidextrously, and features a unique fibre adapter, allowing users to

cleave two bare fibres simultaneously when paired with the dual fibre stripper, the

SS-05. The scrap collector and fibre adapter side can be swapped by the user for left

or right-handed preference, or as environmental constraints dictate. Furthermore, the

thumbwheel on the bottom of the cleaver is utilised for blade rotations as opposed to

previous tedious processes to rotate a cleaver blade. The top lever opens past vertical

allowing for easy viewing, cleaning, and adjustment of the cleave length. The blade

is retracted when the top lever is opened and the blade activates to score the fibre

when it is closed, making this a true one-step cleaver. Like its predecessor, this cleaver

can withstand a 30” drop from any of six different orientations and still maintain

factory specified cleave angle performance. The cleaver blade and fibre clamping

mechanisms are easy to replace in the field, mitigating the need to send this cleaver

in for service.

CT16 Fibre Cleaver Features:

Dual fibre adapter plate for single or two fibre cleaving

Ambidextrous operation available

Field replaceable fibre clamp pads and cleaver blade

Shock resistant for drops up to 30" in any of six different orientations

Compact form factor and tool-less blade rotations

CT16 Fibre Cleaver Application:

Small cell site

FTTx drops and terminations

MDF/IDF splices and terminations

Rural fibre deployments and restorations

CT16 Fibre Cleaver Specifications
