Brand::Fujikura

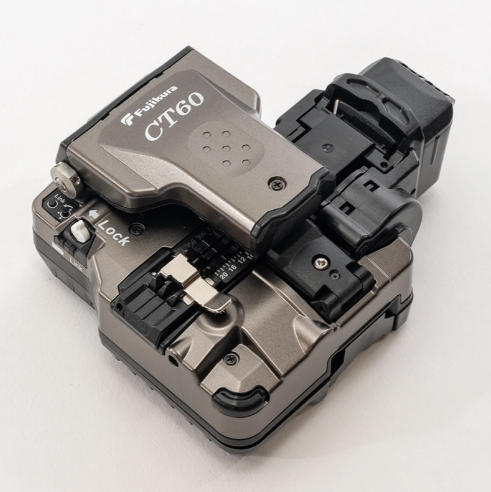

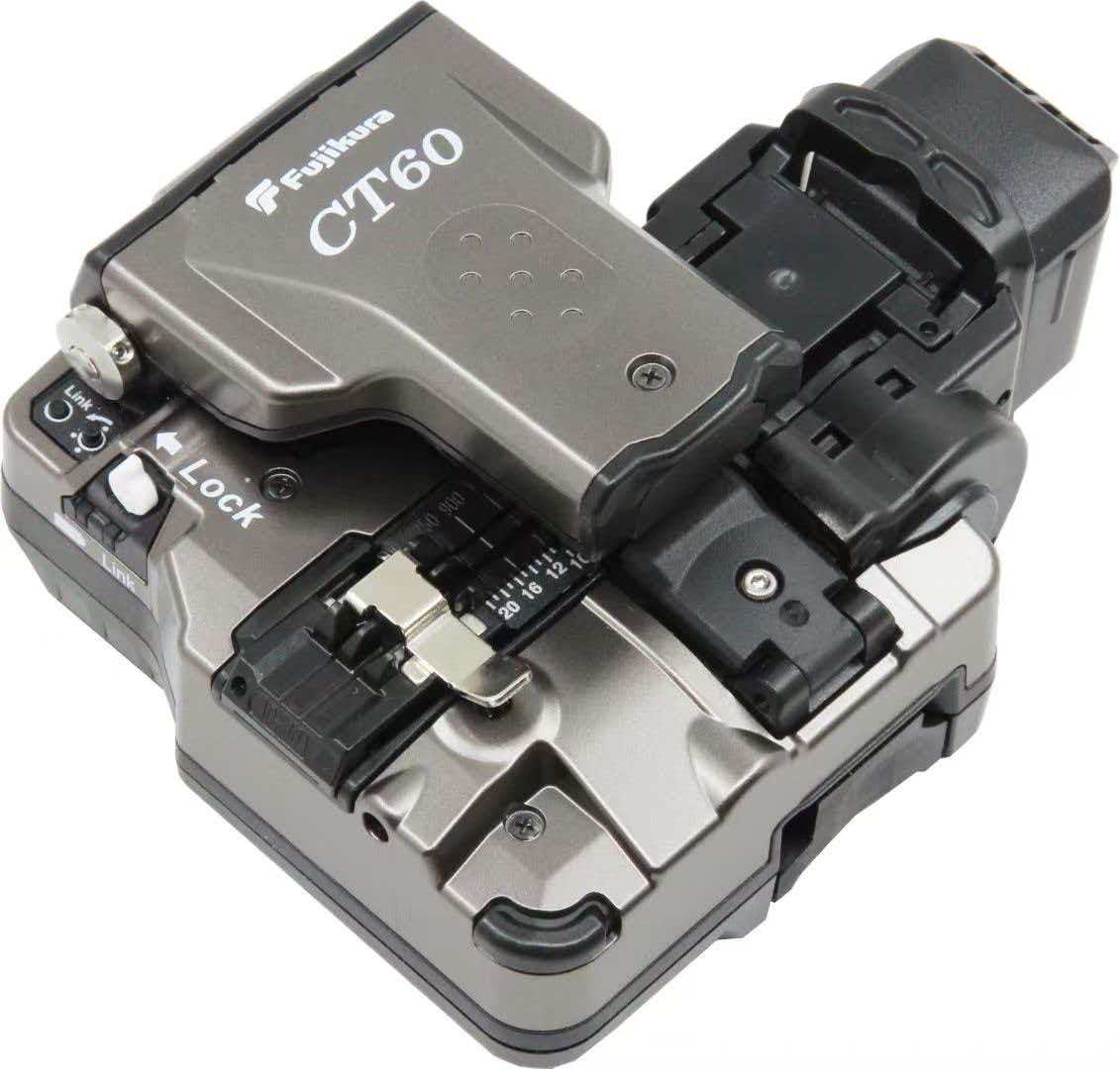

CT60 Fujikura Optical Fiber Cleaver Features
Motorized blade rotation
Bluetooth communication
Shock resistant
Simple one-step operation
60,000 cleave blade life
Field serviceable
CT60 Fujikura Optical Fiber Cleaver Specifications
|
Applicable Fiber |
Fiber type |
Single-mode optical fiber |
|
Multimode optical fiber |
||
|
Fiber count |
Single, up to 16 fibers |
|
|
Cladding diameter |
Approx. 125 μm |
|
|
Applicable Coating |
Fiber plate |
AD-60A: Max. 900 µm coating diameter maximum |
|
AD-60B: Max. 3 mm coating diameter maximum |
||
|
Fiber holders |
FH-50, FH-60, FH-70, FH-100 and FH-110 series |
|
|
Cleave Length |
Fiber plate |
AD-60A: ≤ 250 µm – 5 ~ 20 mm, 900 µm – 10 ~ 20 mm |
|
AD-60B: 3 mm Max – 14 ~ 20 mm |
||
|
Fiber holder |
Approx. 10 mm |
|
|
Cleave Angle |
Single fiber |
Avg. 0.3 to 0.9 degrees |
|
Fiber ribbon |
Avg. 0.3 to 1.2 degrees |
|
|
Blade Life |
Approx. 60,000 fiber cleaves |
|
|
Physical description (lever closed) |
Dimensions W |
Approx. 113 mm |
|
Dimensions D |
Approx. 92 mm |
|
|
Dimensions H |
Approx. 54 mm |
|
|
Weight |
Approx. 293g including battery and AD-60A |
|
|
Environmental condition |
Temperature |
Operate: -10°C to 50°C |
|
Storage: -40°C to 80°C |
||
|
Humidity |
Operate: 0 to 95%RH non-condensing |
|
|
Storage: 0 to 95%RH non-condensing |
||
|
Battery |
2 ea. batteries LR03/AAA dry battery |
|
|
Wireless interface |
Bluetooth 5.2 |
|
|
Screw hole for tripod |
1/4-20UNC |
|
|
Other features |
Blade rotation |
Motorized rotation |
|
Manual rotation dial |
||
|
Replaceable items |
Blade |
|
|
Clamp arm |
||
