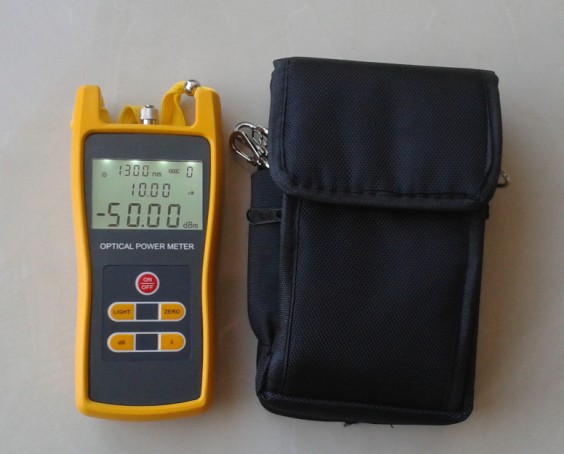

OPM-300 optical power meter
OPM-300 optical power meter
Brand:INTOSEA
Model:OPM-301/OPM-302
Information

OPM-300 handheld optical power meter is a compact and an easy-to-use testing instrument

for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance,

wide range of power measurement, high accuracy and user self-calibration function

with high performance-to-price ratio.

OPM-300 optical power meter Features
User self calibration function
Comfortable LCD display and optional backlight LCD display supports
night operation
Power measurements in dBm or mw and insertion loss in dB
Low battery consumption, more than 240 hours continual operation time
for three 1.5V alkaline batteries
Optional 10 minutes Auto-off function

Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of  optical fibers
Other Fiber Optic Measurements



OPM-300 optical power meter Specifications

Type

OPM-301

OPM-302

Wavelength(nm)

800~1700nm

Detector

InGaAs

Measurement Range (dBm)

-70~+6

-50~+26

Uncertainty

±5%

Calibrated Wavelength(nm)

850,980,1300,1310,1490,1550

Resolution(dB)

0.01

Optical Connector

FC(interchangeable SC,ST) / as well as 2.5mm universal

Power Supply

AlkalineBattery(3 AA 1.5V batteries)

Battery Operating Time

240 h with 1.5VBattery(3)

Operating Temperature(℃)

-10 ~ +60

Storage Temperature(℃)

-25 ~ +70

Relative Humidity

0 to 95% (non-condensing)

Dimension(mm)

175x82x33

Weight(g)

310

OPM-300 optical power meter Standard Packages

OPM-300 Optical Power Meter, Protective Rubber Boot, 3pcs 1.5V batteries, User Manual,

Cotton swabs and Soft carrying case.
