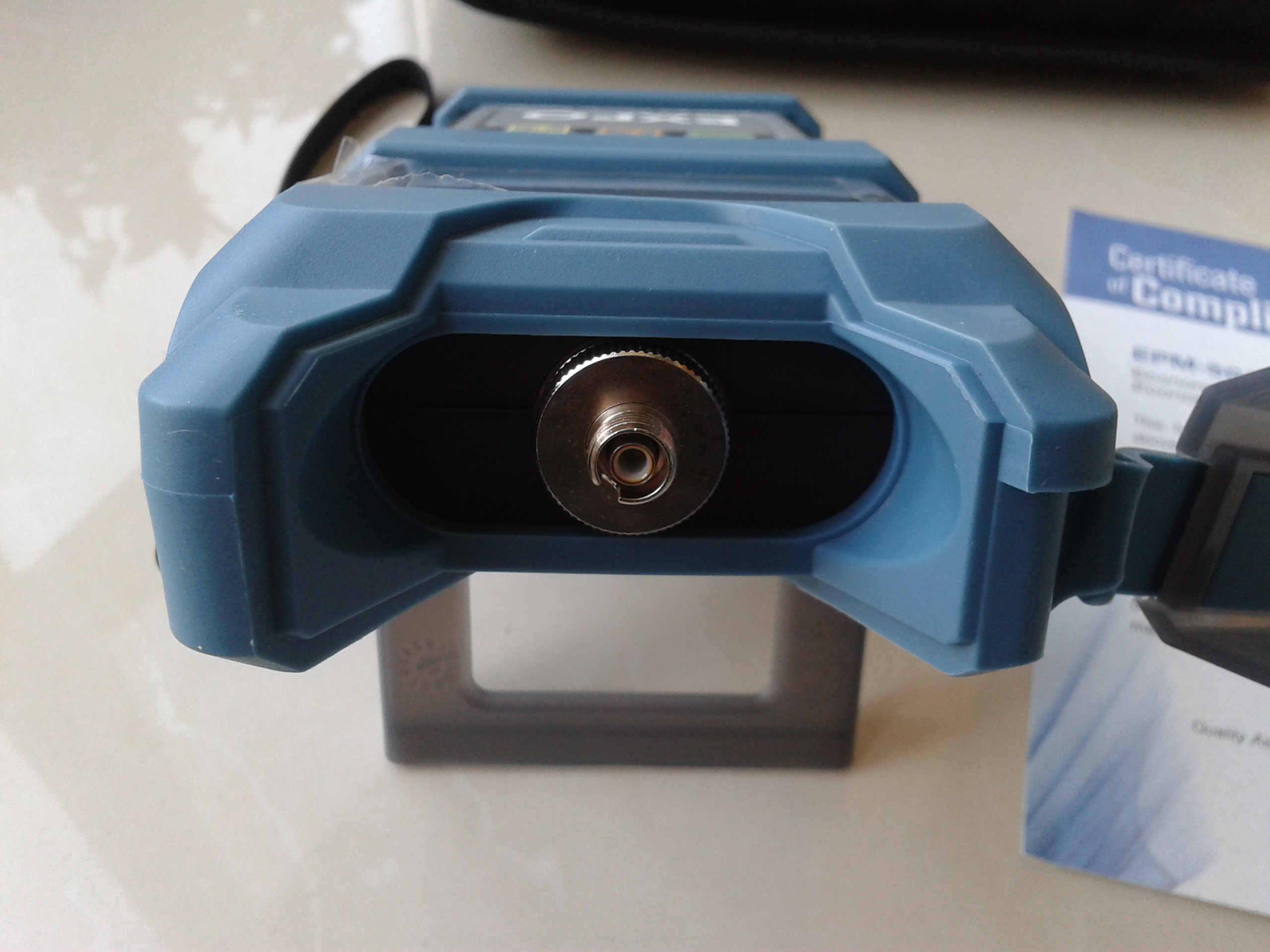

EPM-53 Optical Power Meter
MODEL：EMP-53
BRAND：EXFO
BRAND：EXFO
Information
EXFO EPM-50 Series Power Meter Key features:
- Rugged design
- Interchangeable connector adapters
- 300 hours of battery life
- Tone recognition for ½ ber ½ cation
- Universal push-pull interface
- Reference function for direct loss measurements
APPLICATIONS:
- High power model for CATV and Telco applications
- Enterprise/LAN for singlemode and multimode
measurements
| SPECIFICATIONS | ||
| MODEL | EPM-53 | EPM-53X |
| Power meter port: | InGaAs | InGaAsX |
| Power range (dBm) | 10 to –60 | 26 to -50 |
| Number of calibrated wavelengths | 850,1300,1310,1490,1550 | 850,1300,1310,1490,1550 |
| Power uncertainty | 5 % | 5 % |
| Resolution (dB) | 0.01 | 0.01 |
| Display units | dB/dBm/W | dB/dBm/W |
| Tone detection (Hz) | 270, 1 k, 2 k | 270, 1 k, 2 k |
| Battery life (hours) | >300 | >300 |
| Warranty (year) | 1 | 1 |
| GENERAL SPECIFICATIONS | ||
| Size (H x W x D) | 189 mm x 78 mm x 37 mm m (7 7/16 in x 3 1/16 in x 1 7/16 in) | |
| Weight | 0.4 kg (0.9 lb) | |
| Temperature operating | -10C to 50C (14F to 122F) | |
| storage | -40C to 70C (-40F to 158F) | |
| Relative humidity | 0 % to 95 % non-condensing | |
