BRAND：EXFO
Features:
Multifunctional light source: up to three singlemode wavelengths on a single port, or four wavelengths (two multimode, and two singlemode) on two ports
Power autonomy of 120 hours
Highest output power in the industry
oneyear warranty and recommended calibration interval, for dramatically reduced cost of ownership Ergonomic, eye-catching handheld package

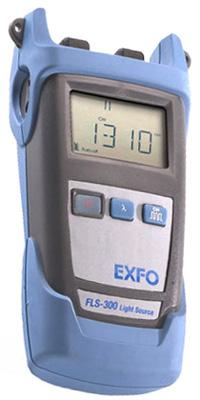

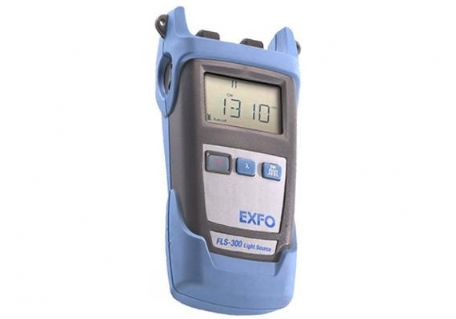

The FLS300 Light Source is part of EXFO’s new line of handheld units, which includes the FPM-300 Power Meter and the FOT-300 Optical Loss Test Set.
Auto-Wavelength Recognition
The FLS-300 Light Source can transmit with a wavelength-identification digital encrypted protocol, so that any compatible unit—the FPM-300 Power Meter and the FOT-300 Optical Loss Test Set—can automatically use the proper calibration parameters. This feature reduces the need for communication between the two technicians and decreases the potential for error.
Distant Referencing
Signal encrypting can also give the receiving end information on the power to be used as reference, helping ensure efficient referencing, even when the two units are far apart
FTTx Ready
EXFO’s FLS300 allows for the testing of passive optical networks (POns) at 1310 nm, 1490 nm and 1550 nm, the three wavelengths recommended by the ITU-T (G.983.3) for POns.
Ordering information
|
Model |
Description |
|
FLS-300-12D-XX |
850/1300 nm LED source (62.5/125 nm) |
|
FLS-300-23BL-XX |
1310/1550 nm laser source (9/125 nm) |
|
FLS-300-234BL-XX |
1310/1550/1625 nm single port laser source (9/125 nm) |
|
FLS-300-235BL-XX |
1310/1490/1550 nm single port laser source (9/125 nm) |
|
FLS-300-12D-XX-23BL-XX |
850/1300 nm LED source (62.5/125 nm) and 1310/1550 nm laser source (9/125 nm) |
