Brand：SUMITOMO

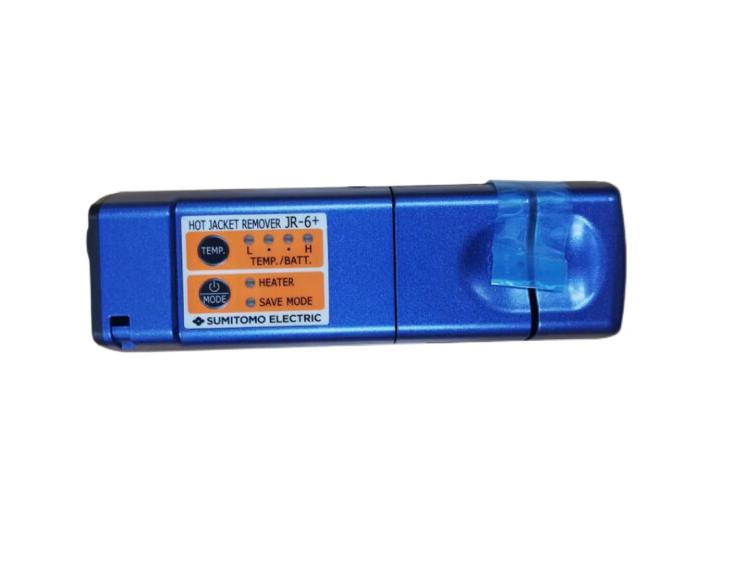

12 cores ribbon fiber hot stripper /optical fiber thermal stripper
|
Product name |
Fiber Optic Thermal Stripper |
|
Model Number |
JR-6+ |
|
Brand Name |
SUMITOMO |
|
Fiber Optic material |
Silica glass |
|
Coating diameter |
Single core: 0.25~0.4mm; 2~12 ribbon fiber: 0.3~0.4mm |
|
Cladding diameter |
125µm |
|
Coating stripping length |
Max. 30mm |
|
Heating mode |
Normal mode, power saving mode |
|
Temperature setting |
Normal mode: 80℃, 100℃ 110℃, 140℃. |
|
Typical heating time |
Normal mode: 4~5secs |
|
Battery usage frequency |
500PC,(12 ribbon fiber,100℃) |
|
Dimension/Weight |
138mm (L)x45mm (W)x35mm (H) /235g |
|
Battery capacity |
1)BU-6Battery(1.620mAh) 2)12VDC Battery adapter， |
|
Warranty Time |
3 months |
|
Packaging and delivery |
15X5X4 cm; 0.400 kg |
